Flows

Flows are Agate's data extraction and enrichment pipelines. They are composed of a series of connected nodes that read your text and produce structured results.

Every flow begins with a step that brings text in and ends with a step that sends results out, with extraction and enrichment steps in between.

What a flow does

Flows turn unstructured text into structured data. A simple flow might take article text, identify its people and places, geocode the places, and save the results for review. A more advanced flow can branch into several extraction tasks and gather results back together.

Most flows follow the same pattern:

  1. Input — bring text into the flow.
  2. Extract — find the entities, metadata, or custom records you care about.
  3. Enrich — add useful context, such as coordinates for locations or embeddings for search.
  4. Output — save the results to Backfield or export them elsewhere.

Demo flow showing a text input, metadata and embedding nodes, entity extraction, geocoding, and JSON output

Building flows

Agate uses a guided builder rather than asking you to wire a technical graph by hand:

  1. Choose the input that describes where content comes from.
  2. Choose the output that describes where results go.
  3. Use the + controls between steps or on a branch to add compatible nodes.
  4. Open a node to review its settings, prompt, model choice, and help text.

Agate creates the connections automatically and offers only steps that can use the available upstream data.

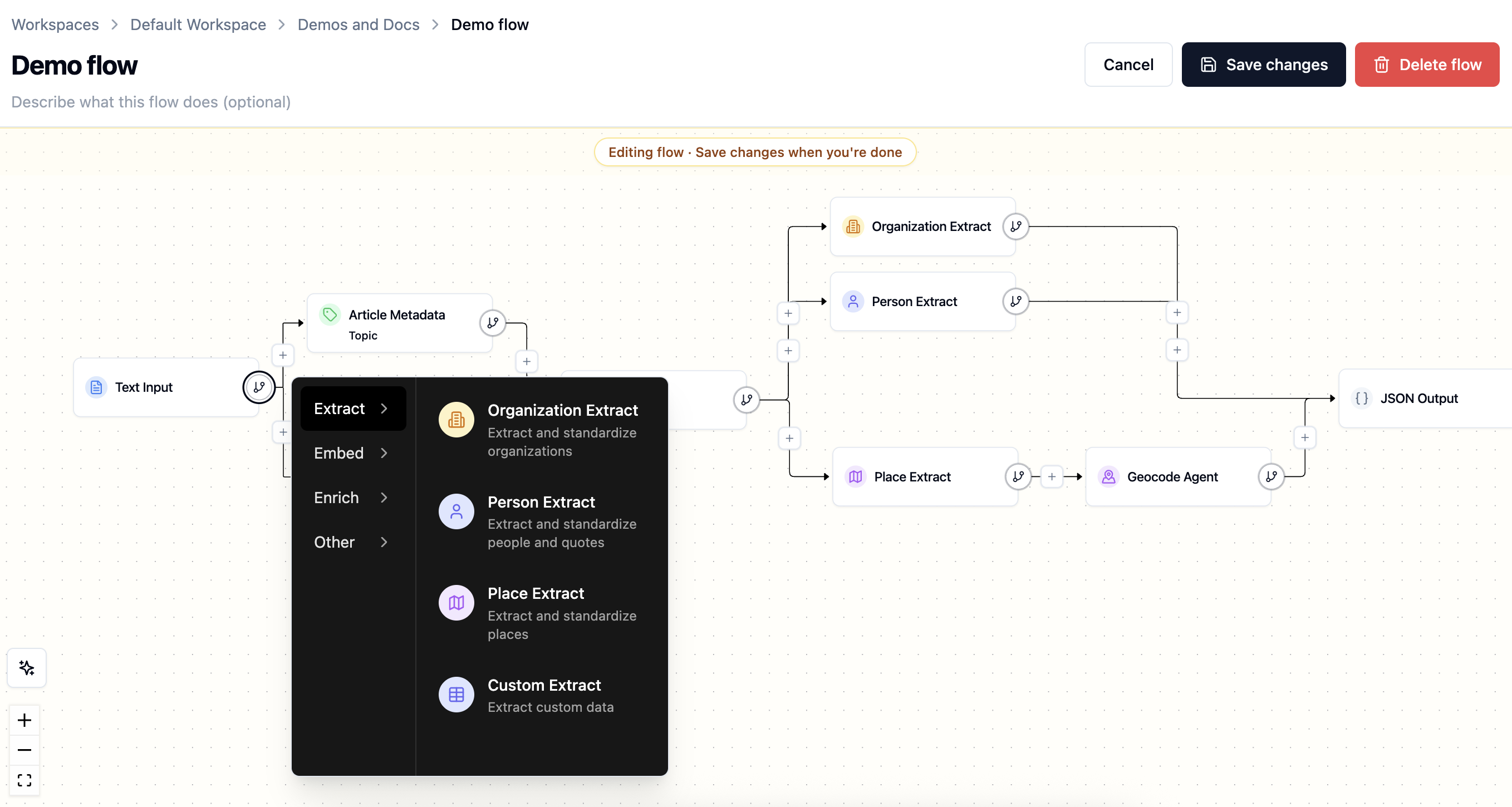

Flow builder menu for adding extract, embed, enrich, and other nodes

Steps can be inserted in sequence or placed on parallel branches. For example, person and organization extraction can run independently from the same article, while Geocode must come after Place Extract on the same branch because it needs the places that step produced. A Place Extract on a parallel branch does not count.

Each node has its own panel. Depending on the node, it may include Settings, Prompt, Models, Info, Stylebook, or Output tabs. The builder draws model choices from the project's approved AI models.

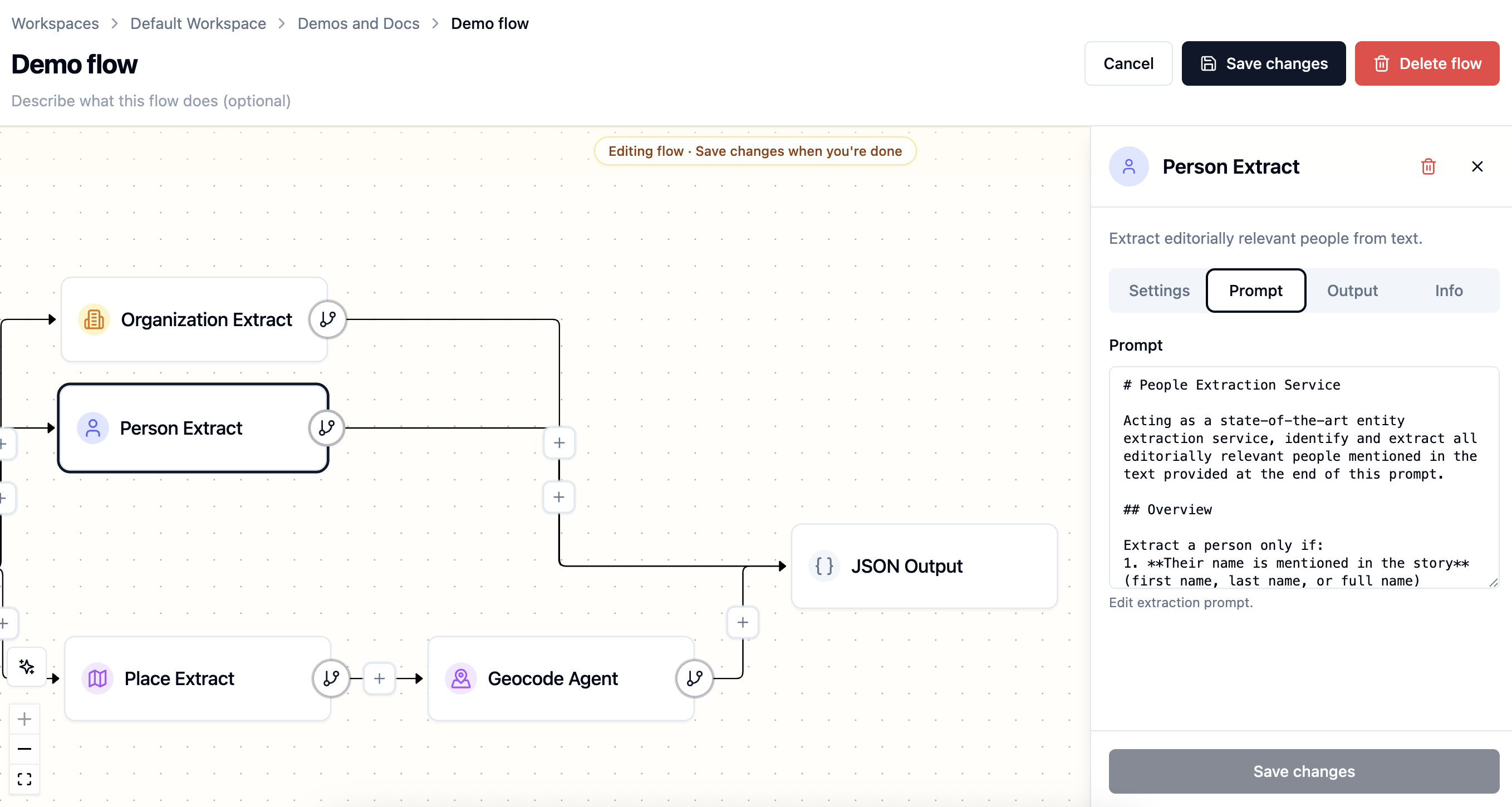

Person Extract node settings panel showing prompt configuration

Inputs and outputs

Every runnable flow needs at least one input and one output. Creating a new flow requires defining these first.

Node type What it does
Input Defines what text or data the run receives, such as pasted text, JSON, or files from cloud storage
Output Defines where the flow sends results, such as Backfield, JSON, or cloud storage

The input and output are the bookends of the flow. The nodes you insert between them are what transforms, extracts, enriches, or routes the data into its final output form.

Branches and control flow

A flow does not have to be a single straight line. You can branch when several steps should read from the same input — for example, one branch extracts people while another extracts locations. Use flow-control nodes to gather branches when a later step needs their combined output.

Branching keeps each node focused. It also makes runs easier to debug because each extraction or enrichment step has its own output.

Saving and editing

Saving validates the complete flow and its node settings. When you edit an existing flow, Cancel restores the saved version and Save flow makes the new definition available to future runs.

A run keeps a snapshot of the flow it executed. This matters when diagnosing older results: changing today's prompt or model does not rewrite yesterday's run graph.

Flows can also be duplicated when a team needs a safe starting point for a different process. Deleting a flow is a separate, confirmed action that removes its runs from Agate. Articles already saved through Backfield Output remain, but metadata tags that traced back to a deleted run no longer show that run as their source.

Validation

Before you run a flow, check that it is complete:

  • The flow has an input node and an output node.
  • Required node settings are filled in.
  • Each node that needs upstream data is connected.
  • Model-backed nodes use an approved model configuration.
  • Output nodes receive the fields they expect.

Agate surfaces validation issues in the builder so you can fix missing settings or broken connections before starting a run.

Running a flow

Building a flow defines the pipeline. A run executes that pipeline. After a run finishes, each article becomes a processed item, where you can inspect node outputs, review extracted entities and correct article-level results before they feed the rest of Backfield.

For Text and JSON inputs, the run view lets you supply or update the current item before starting. S3 inputs instead describe a batch source. A flow may also be enabled for trusted API-triggered runs when an external system needs to start it.

Reconciliation on rerun

When Backfield Output saves an article that has been processed before, its reconciliation policy determines how new machine-produced evidence combines with existing evidence:

  • Add Only keeps prior machine output and adds new results.
  • Smart Merge updates compatible data without treating the new run as a complete replacement.
  • Replace treats emitted machine domains as authoritative, removing prior machine associations that are no longer present.

Editor-added and editor-modified evidence is preserved. Agate shows this policy in rerun confirmation so the effect is clear before processing starts.
